Digital IC Design - Lab 4 - EE421L

Author: Brian Wolak,

Email: wolak@unlv.nevada.edu

September 15, 2021



Lab Description

This lab will focus on the IV characteristics, layout, and simulation of PMOS and NMOS devices in the ON Semiconductor Cadence C5 Process.



Pre-Laboratory Procedure

- Before starting this lab, all previous work was backed up using .zip files and my personal Google Drive.

- The lab was read in its entirety to be prepared for instruction after covering all material found in Tutorial 2



Laboratory Objectives

1.) Generate the 4 schematics and simulations below

- 6u/600n NMOS simulating ID v. VDS varying VGS from 0-5V in 1V steps while VDS varies from 0-2V in 1mV steps

- 6u/600n NMOS simulating ID v. VGS for VDS = 100mV where VGS varies from 0-2V in 1mV steps

- 12u/600n PMOS simulating ID v. VSD for VSG varying 0-5V in 1V steps with VSD varying 0-5V in 1mV steps

- 12u/600n PMOS simulating ID v. VSG for VSD = 100mV varying VSG 0-2V in 1mV steps



2.) Lay out a 6u/600n NMOS connecting all 4 terminals to probe pads adjacent to the MOSFET device

- Show DRC confirmation and corresponding schematic with proof of LVS



3.)  Lay out a 12u/600n PMOS connecting all 4 terminals to probe pads adjacent to the MOSFET device

- Show DRC confirmation and corresponding schematic with proof of LVS


Laboratory Procedure

This lab begins with creating the testing schematics with probe pads for each NMOS and PMOS device along with a symbol for each. Below you can see the results of each PMOS and NMOS device circuit and thier respective symbol created using Cadence Design software.



Click for larger image

Figure 1: NMOS schematic with pads



Click for larger image

Figure 2: NMOS Symbol



Click for larger image

Figure 3: PMOS schematic with pads


Click for larger image
Figure 4: PMOS Symbol

Simulations
A series of simulations will now be performed to obtain the appropriate IV cruves for each device.

NMOS Device - ID v. VDS
Click for larger image
Click fro larger image

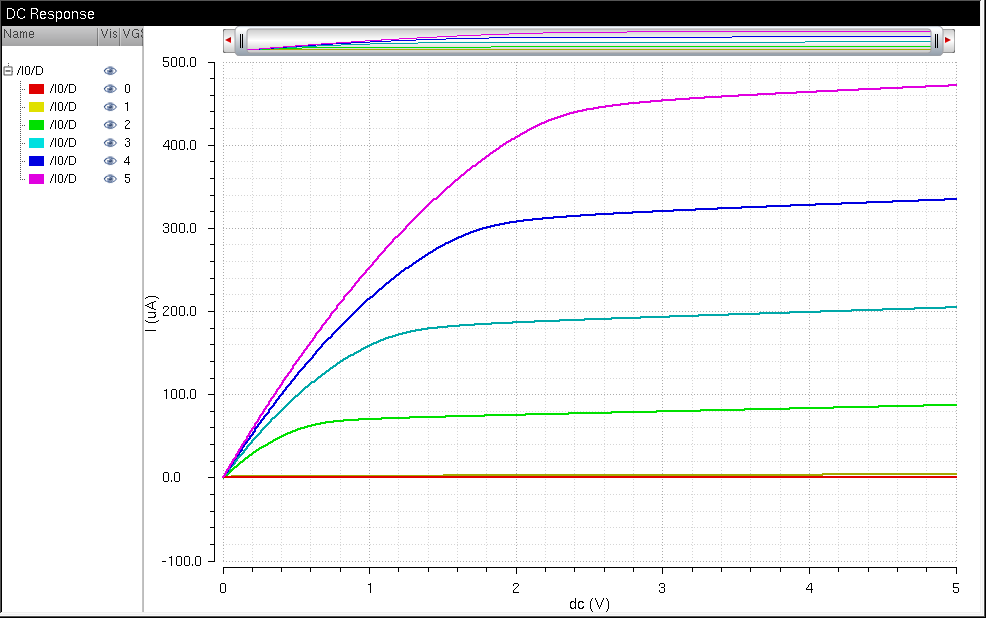

Figures 5-6: NMOS Simulation circuit and results simulating ID v. VDS

NMOS Device - ID v. VGS
Click for larger image
Click for larger image
Figures 6-7: NMOS Simulation circuit and results simulating ID v. VGS

 PMOS Device - ID v. VSD
Click for larger image
Clikc for larger image
Figures 8-9: PMOS simulation circuit and results simulating ID v. VSD

 PMOS Device - ID v. VSG

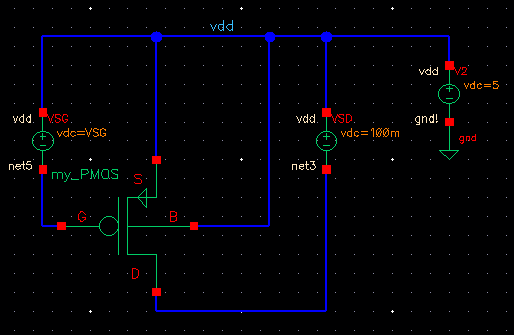

Click for larger image
Click fro larger image
Figures 10-11: PMOS simulation circuit and results simulating ID v. VSG

PMOS 12.0um / 600nm Layout
Click for larger image

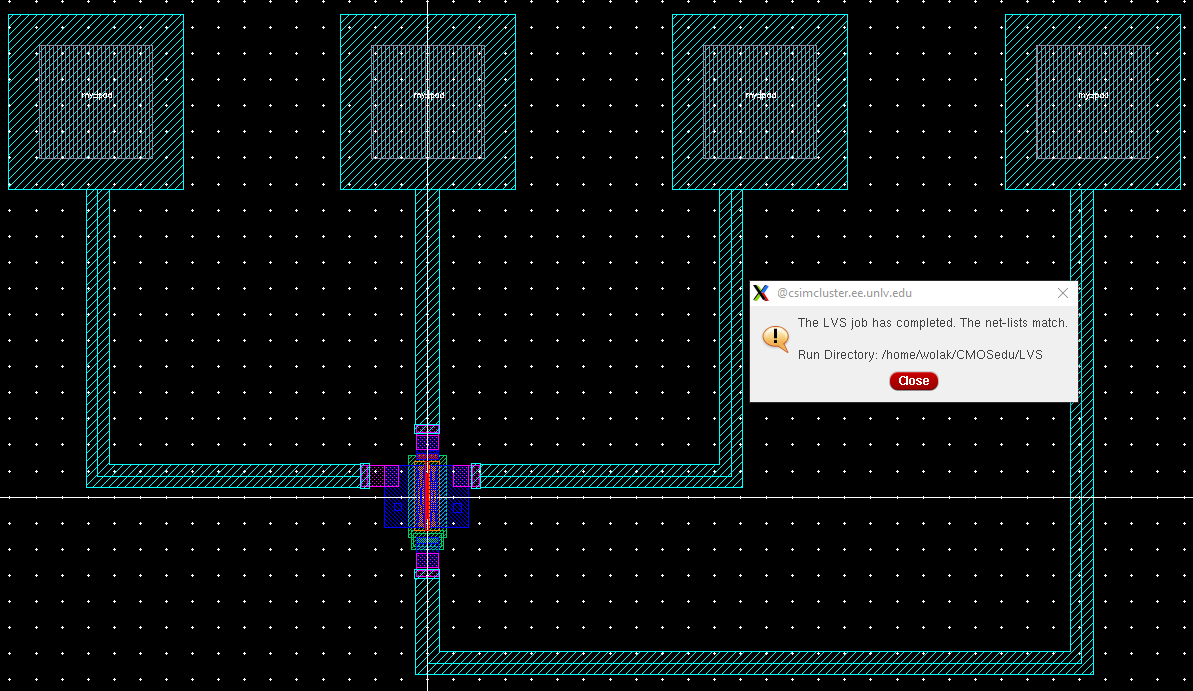

Figure 12: PMOS layout showing probe pads and LVS confirmation



Figure 13: PMOS DRC Confirmation



Click for larger image

Figure 14: Zoomed in view of PMOS device layout



NMOS 6.0um / 600nm Layout

Click for larger image

Figure 15: NMOS layout showing probe pads and LVS confirmation


Figure 16: NMOS DRC Confirmation

Clcik for larger image

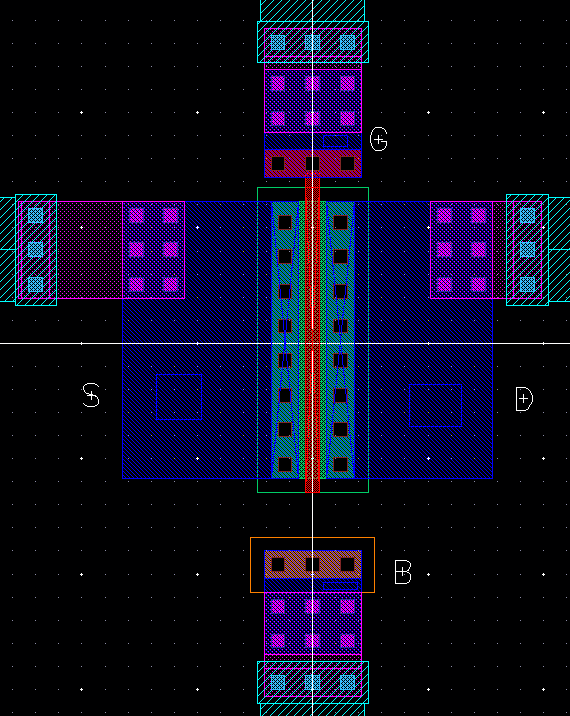

Figure 17: Zoomed view of NMOS device layout

Backups

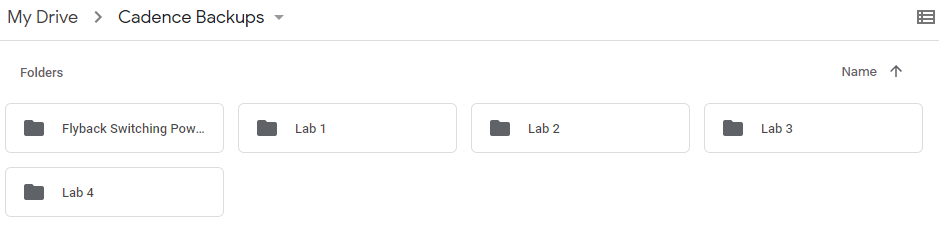

As with all prevous labs, work was periodically backed up using .zip files and my personal Google Drive
